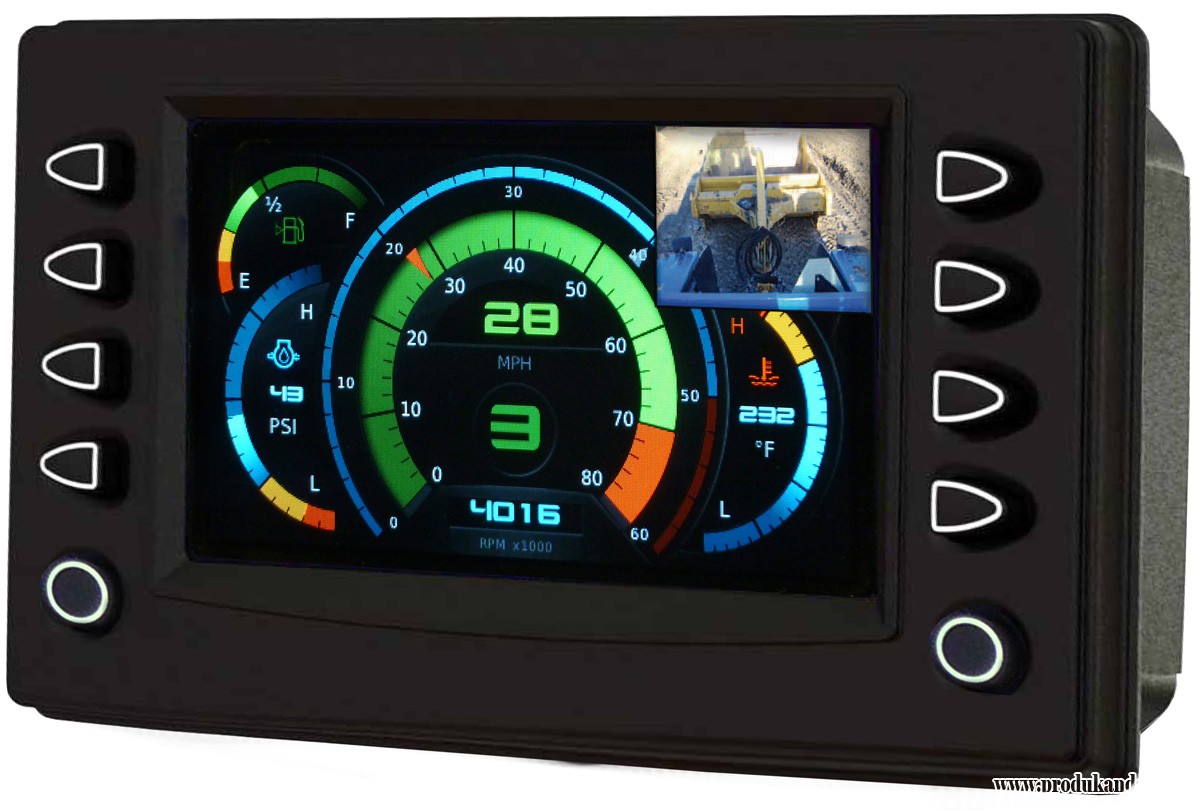

The PV780 features a full color, 7-inch bonded LCD for brighter, smoother graphics and best in class sunlight readability. The rugged design makes this display a great solution for extreme environments.



The PV780 display is compatible with PowerVision Configuration Studio™ which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface. Murphy's Configuration Studio™ software is available for purchase as an option. It is NOT included with your purchase of the PV780 display.





Features:

• CAN-Based Display With Rich, Full-Color Graphics

• Compatible With Both Mechanical and Electronic Engines

• Tier 4/Euro Stage IV ready

• Sunlight Readable LCD

• Rugged Design for Extreme Environments

• Multiple Languages

• Optional, easy-to-use PowerView Configuration Studio™ software is offered as an add-on option



Technical:

• Display: 7” (178mm) color transmissive TFT LCD

• Resolution: WVGA, 800 x 480 pixels, 16-bit color

• Aspect Ratio: 16:9

• Orientation: Landscape or Portrait

• Backlighting: LED, 1000 nit maximum brightness

• Microprocessor: Freescale™ i.MX357, 32 bit, 532 MHz, ARM11 core

• QNX® Real-time Operating System

• Flash Memory: 2 GB total, 1 GB available for data logging

• RAM: 128 Mbytes SRAM

• Operating Voltage: 6-36 VDC, reverse polarity protected

• Video input:s:  3 NTSC/PAL

• Connectors: 2 AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)

• Keyboard: 10 tactile pushbuttons with white LED backlight

• USB: (1) USB 2.0 host (OTG, full speed)

• Real time clock:  with Li-ion rechargeable battery backup



Communications:

• (2) CAN 2.0B with one isolated (NMEA 2000 compliant); J1939 and CANopen protocols; proprietary messaging

• (1) RS-485 serial (MODBus master/slave)

• (1) USB Host (OTG)



Outputs:

• (1) 500mA switched low-side

• (1) Frequency Out (2Hz - 5 kHz) Vbat rms square wave



Inputs:

• (3) Analog 0-5VDC, 4-20 mA, or resistive

• (5) Discreet Digital 0-5V, Active High

• (1) Frequency In (2Hz - 10 kHz), 5Vpk-pk.min, 120Vpk-pk max.





PV750-V (78700493) : PowerView™ Display with Video
